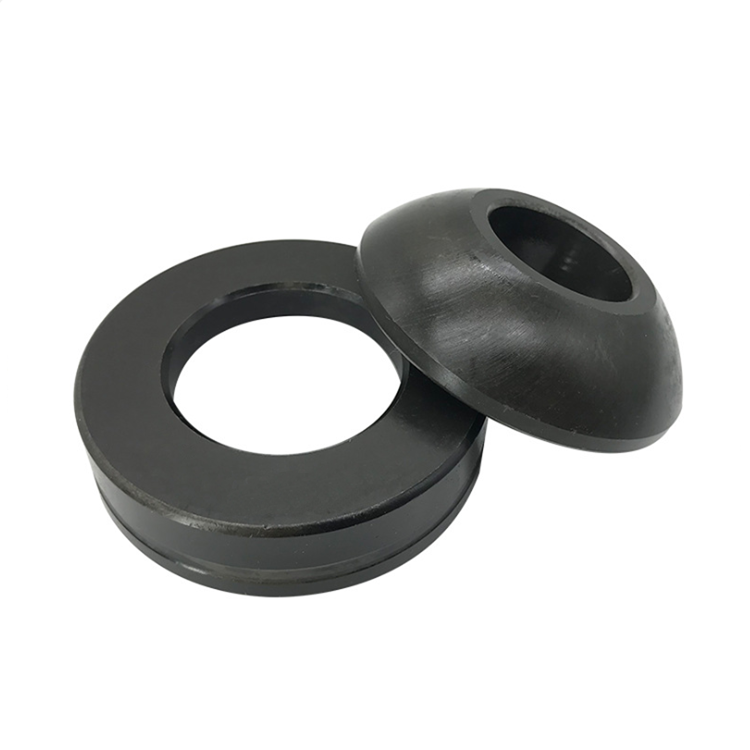

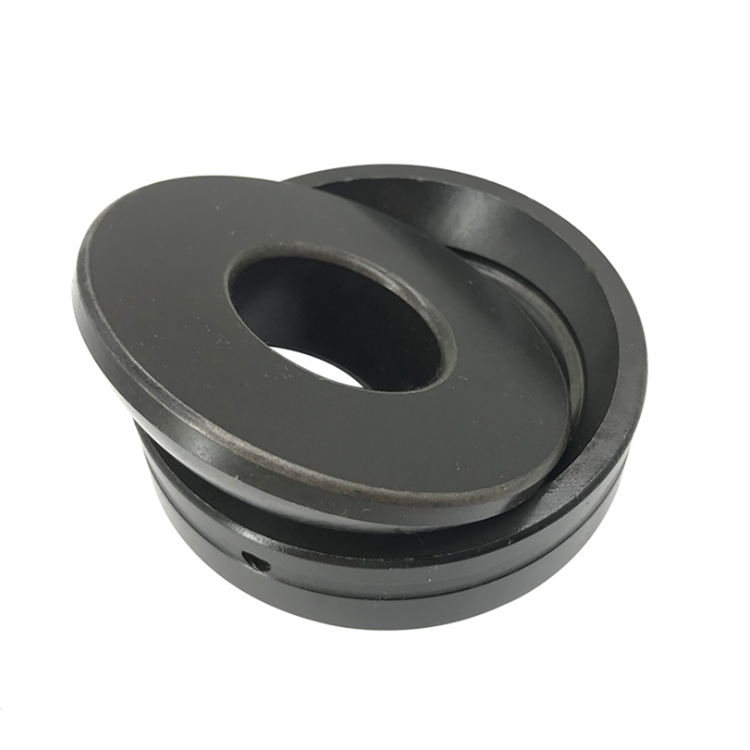

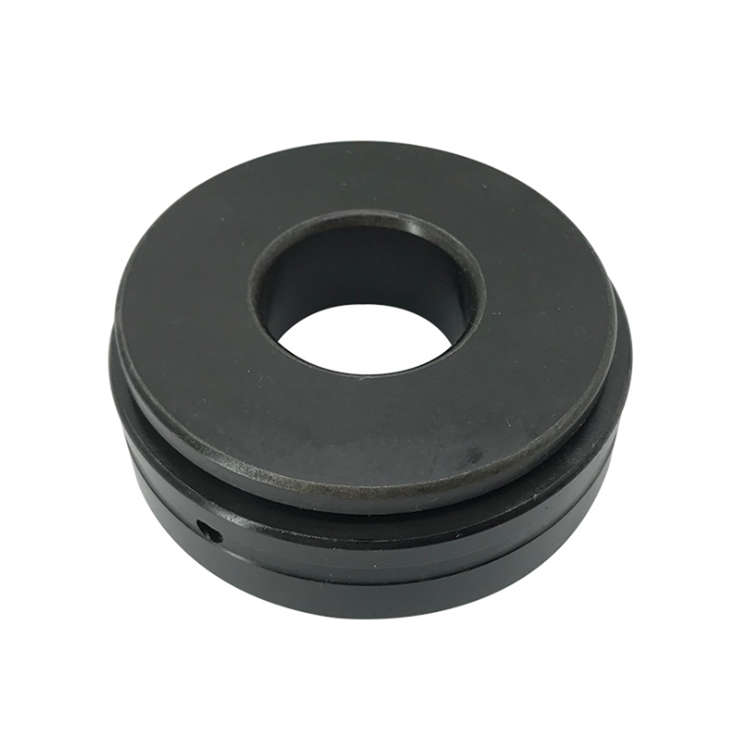

Angular Contact Spherical Plain Bearings GE AX Series

Part No.

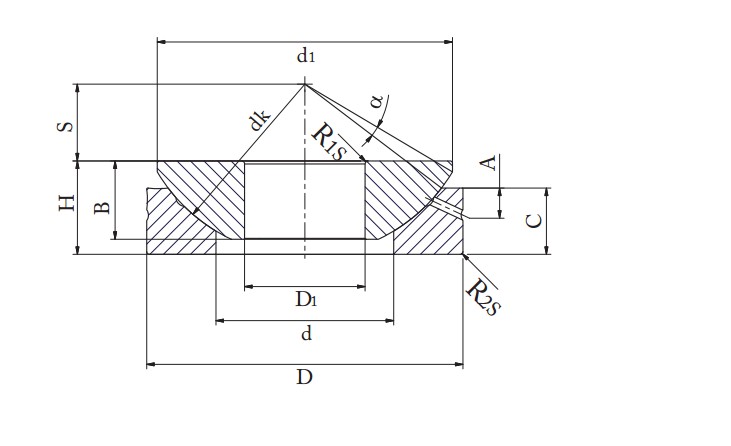

DIMENSIONS (MM)

Weight

d

D

H

B

C

S

A

kg

GE 10 AX

10

30

9.5

7.9

6

7

3

0.04

GE 12 AX

12

35

13

9.3

9

8

4

0.07

GE 15 AX

15

42

15

10.7

11

10

5

0.12

GE 17 AX

17

47

16

11.5

11.5

11

5

0.16

GE 20 AX

20

55

20

14.3

13

12.5

6

0.25

GE 25 AX

25

62

22.5

16

17

14

6

0.38

GE 30 AX

30

75

26

18

19.5

17.5

8

0.65

GE 35 AX

35

90

28

22

20

22

8

1

GE 40 AX

40

105

32

27

22

24.5

9

1.6

GE 45 AX

45

120

36.5

31

25

27.5

11

2.4

GE 50 AX

50

130

42.5

33.5

32

30

10

3.3

GE 60 AX

60

150

45

37

33

35

12.5

4.5

GE 70 AX

70

160

50

40

36

35

13.5

5.5

GE 80 AX

80

180

50

42

36

42.5

14.5

7

GE 100 AX

100

210

59

50

42

45

15

10.5

GE 120 AX

120

230

64

52

45

52.5

16.5

13

GE 140 AX

140

260

72

61

50

52.5

23

18

GE 160 AX

160

290

77

65

52

65

23

23

GE 180 AX

180

320

86

70

60

67.5

26

31

GE 200 AX

200

340

87

74

60

70

27

34
